The MGA With An Attitude
USED and ABUSED Parts - Page 1
This is a Museum of the Dead. Some of these things leave you stranded, some not.
![broken crankshaft](pics/crank2pc.jpg)

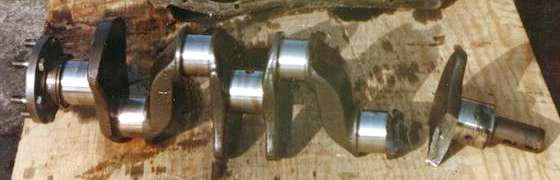

Broken crankshaft. - Driven 40 miles to safe harbor before repairs.
For details see Tales - July 5, 1989
![clutch release bearing](pics/to_brg_s.jpg)

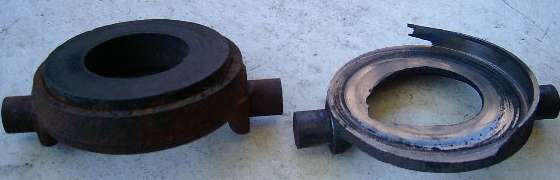

Slightly worn clutch release bearing. Was someone resting a foot on the clutch pedal?
(Photo from Eric Erickson)
|
|
![Fractured halfshaft](../mgtech/rearaxle/pics/half_shaft_fracture_s.jpg)
10-spline halfshaft giving up after 47 years, 340,000 miles (and Barney's heavy foot).
|

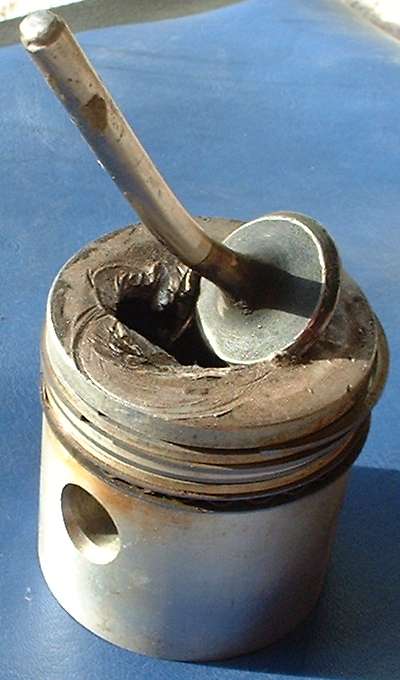

Valve stem broken at the keeper groove. Field repair with chewing gum and a hair pin allowed this to be driven 180 miles to safe harbor before repairs. This came with the problem pushrods at right.
|
![Tubular pushrods failed](pics/prs_bent_s.jpg)

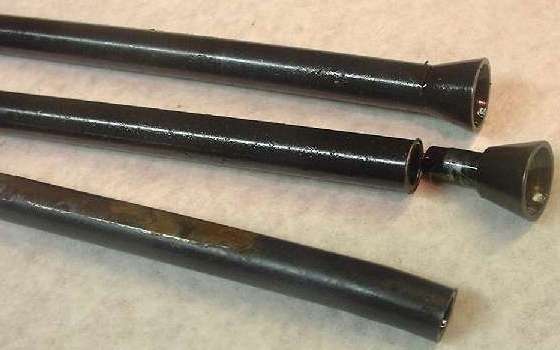

Tubular pushrods failed at 2400 miles
Click for full report.
Removed 1 pushrod and drove home.
|
![Pushrod bent](pics/prs_bent2_s.jpg)

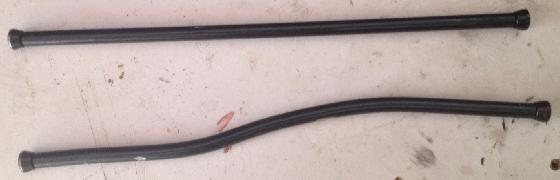

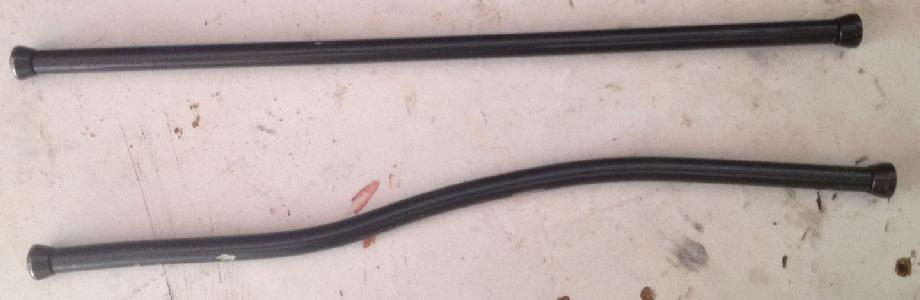

Cause of this one is yet to be determined. It came from an engine with big valve head (probably shaved a bit), and eyebrows cut in the block. Possibly eyebrows were not deep enough, or maybe the valve guides were too high.
![failed alloy valve spring caps](pics/sprcap_2s.jpg)

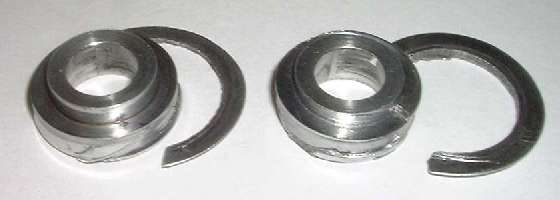

Alloy valve spring caps fractured due to faulty manufacture. - Click for full report.
Driven 150 miles under 4000 rpm running on inner valve springs only.
|

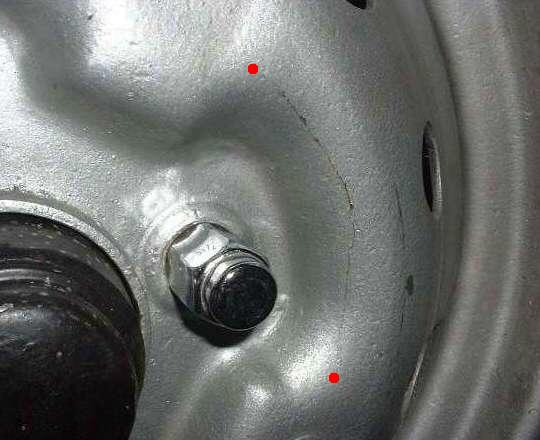

I encountered a LOT of cracked steel disc wheels before I switched to alloy wheels.
Click for report with caution notes.
|
![badly worn clevis pin](pics/clevis_pin1s.jpg)
|
|

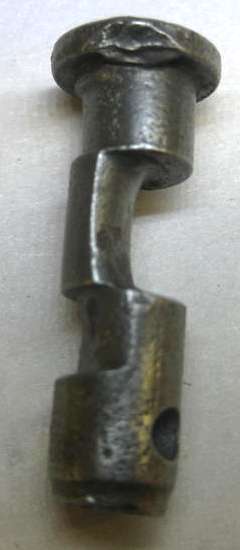

Badly worn clevis pin. More common than you might think.
|
|
![Worn out differential carrier bearing](../mgtech/rearaxle/pics/dif_brg_5s.jpg)

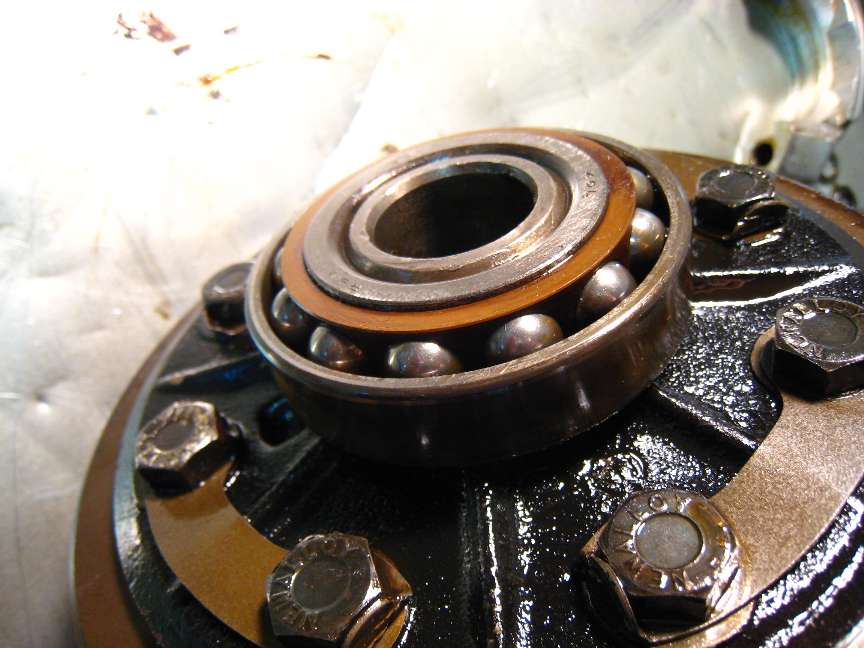

Badly worn differential carrier bearing with races out of plane. How loud can you yell "W-H-I-N-E" (before it goes crunch)?
|
![Twisted steering shaft](pics/twisted_steering_shaft_s.jpg)

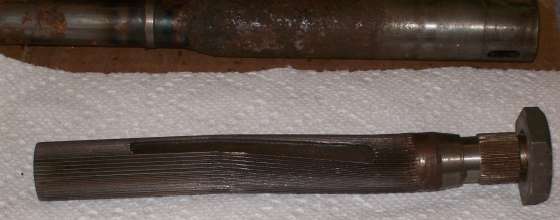

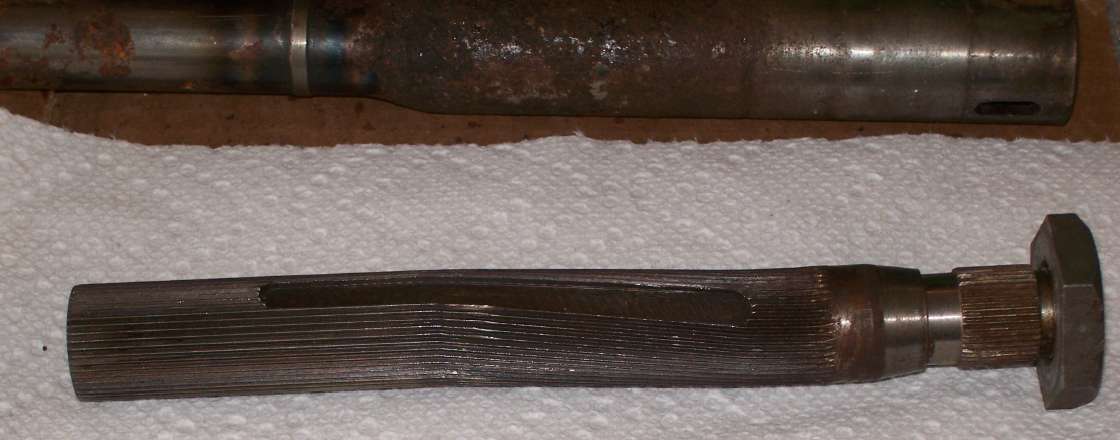

This is not the way to adjust your adjustable steering column. I wonder now hard you have to hit a curb, and how tight you have to hang onto the steering wheel to make that twist in a steel shaft. -- (Photo compliments of George String).
|
