FORD "Type-9" 5-SPEED GEARBOX for the MGA - GT-402B
Which One To Use
These notes from Peter Gamble at High Speed Engineering
MG TB, TC, TD, TF, MGA, MGB - 5 Speed Conversion

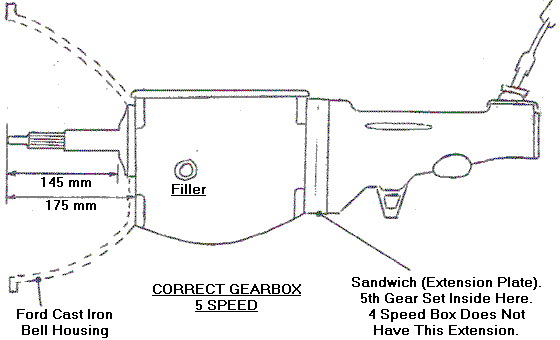

How To Recognise Correct Gearbox
Type: Ford Type 9 Fitted To Ford Sierra Car
1.6L, 1.8L, 2.0L 1982-87
1.6L, 1.8L, 1982-90/91
Similar Gearbox With Longer Primary Shaft Fitted To
2.3L, 2.8L (Sierra), Capri, Transit Vans, XR4 2.3 Diesel.
Do Not Use This One - Primary Shaft Too Long.
Do Not Use Gearbox With Electronic Speedo Output.

|
|
