MGA Part Numbers - 1G3268
Peg for Interlocking front thrust washer on mainshft.

PART NO.  SPL.PAGE  DESCRIPTION
1A1964    15.F.3    Restrictor -oil (third motion shaft, gearbox, 1500)
1A1964    16.F.3    Restrictor -oil (third motion shaft, gearbox, 1600 and 1600-MK-II)
1A1964    16.F.3    Restrictor -oil (3rd motion shaft, gearbox, Twin Cam)
1G3268    15.F.3    Peg for thrust washer -front (3rd gear)
1G3268    16.F.3    Peg -thrust washer -(front, 3rd gear, gearbox, 1600 and
    1600-MK-II)
1G3268    TC.F.3    Peg -front thrust washer -(3rd gear, gearbox, Twin Cam)
2K8960    15.F.3    Spring for peg -(thrust washer front 3rd gear, gearbox, 1500)
2K8960    16.F.3    Spring -peg -(thrust washer front 3rd gear, gearbox, 1600 and
    1600-MK-II)
2K8960    TC.F.3    Spring -peg -(thrust washer front, 3rd gear, gearbox, Twin Cam)
WKN304    15.F.3    Key for gear (speedometer driving gear in gearbox, 1500)
    -[Woodruff 304]
WKN304    16.F.3    Key -speedometer gear -(gearbox, 1600 and 1600-MK-II) -[Woodruff 304]
WKN304    TC.F.3    Key -gear -(speedo drive, gearbox, Twin Cam) -[Woodruff 304]

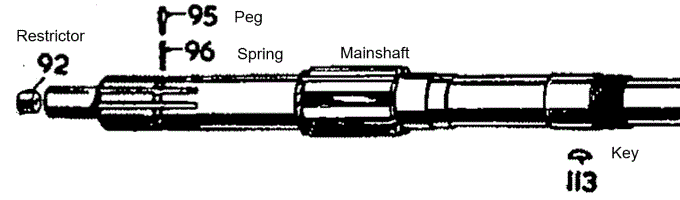

Peg, front thrust washer

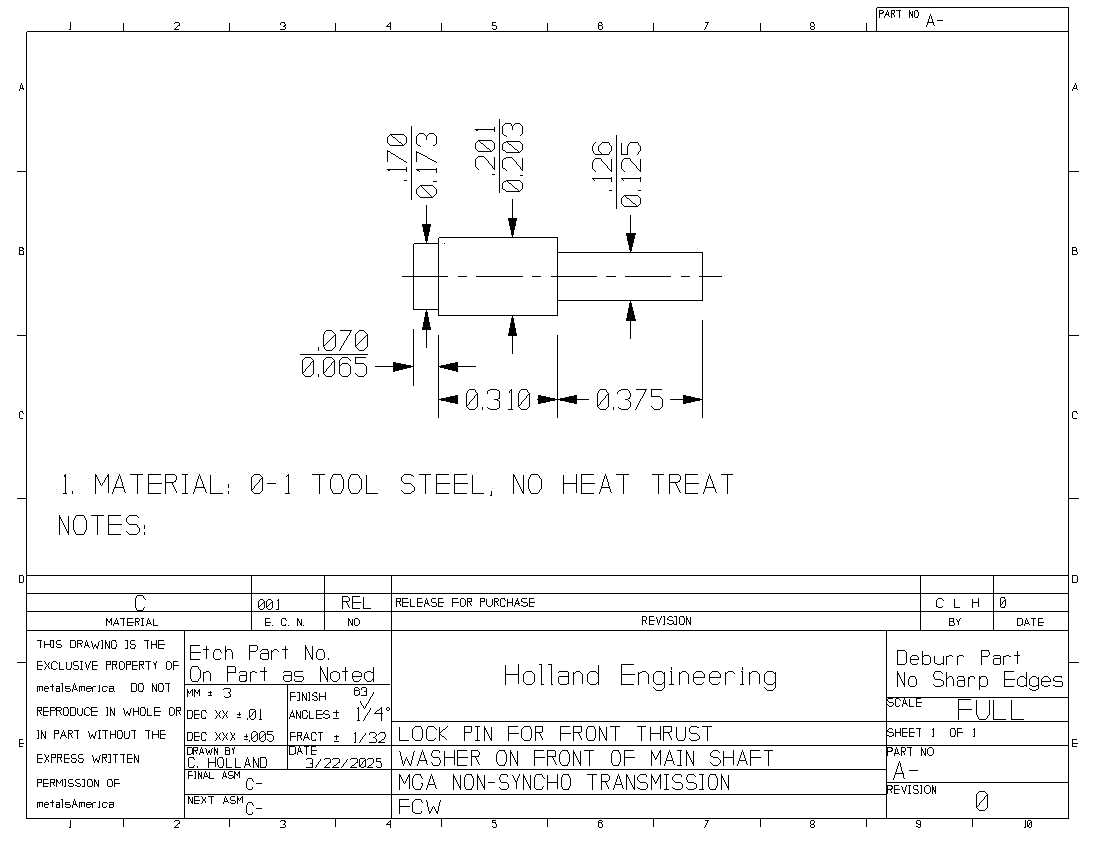

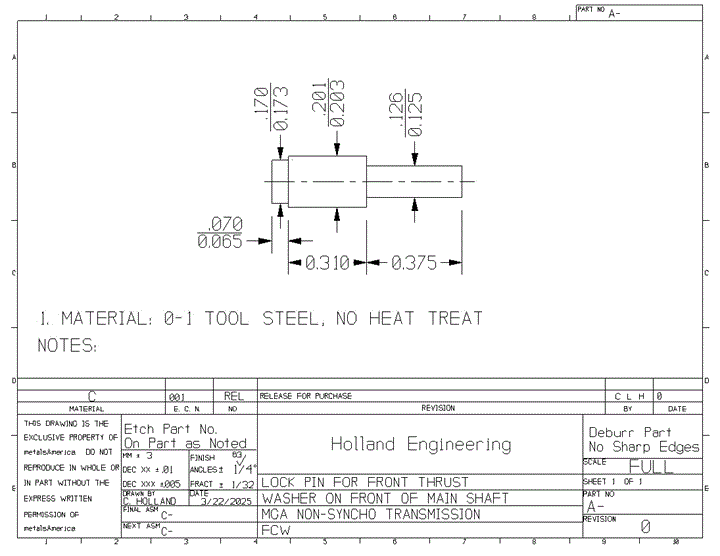

Thanks to Curt Holland at Holland Engineering for the drawing below.
This part has been made from the drawing and installed. It fits and works well.
