MGA Part Numbers - 3H544
Banjo Fittings for Clutch Master and Slave

PART NO.  SPL.PAGE  DESCRIPTION
3H544     15.E.2    Banjo for slave cylinder -(clutch, 1500) -Fin.(C)11767
3H544     15.M.2    Banjo -master cylinder -(for clutch pipe)
3H544     16.M.3    Banjo -master cylinder -(for clutch pipe) -(std.model 1600 and
    1600-MK-II)
3H547     15.E.2    Bolt for banjo to slave cylinder -(clutch, 1500) -Fin.(C)11767
3H547     15.M.2    Bolt -banjo -(master cylinder clutch pipe)
3H547     16.M.3    Bolt -banjo -(master cylinder, std.model 1600 and 1600-MK-II) -changed
    to 11K8276
3H549     16.M.3    Joint -banjo bolt connection (lower) -(master cylinder, std.model 1600
    and 1600-MK-II) -changed to 7H7456
3H550     15.E.2    Joint for banjo -(slave cylinder, clutch, 1500) -Fin.(C)11767
3H550     15.H.4    Joint for banjo connection (large) (2) (rear brake banjo)
3H550     15.M.2    Joint for banjo connection -(upper, master cylinder clutch pipe)
3H550     16.E.2    Joint -clutch hose -(at clutch hose on chassis, clutch controls, 1600)
3H550    16.H.4    Gasket -banjo connection (large)(2) -(rear drum brakes, 1600 and
    1600-MK-II)
3H550     16.M.3    Joint -banjo connection -(upper, master cylinder, std.model 1600 and
    1600-MK-II)
3H550     16.M.5    Gasket -front brake hose (2) -(hyd.pipes +fittings, std.model 1600 and
1600-MK-II)
3H2287    15.H.4    Joint for banjo connection (small) (2) (rear brake banjo)
3H2287    15.M.2    Joint for adapter -(master cylinder clutch pipe)
3H2287    15.M.3    Joint for brake hose (3) -(hydraulics, 1500)
3H2287    16.H.4    Gasket -banjo connection (small)(2) -(rear drum brakes, 1600 and
    1600-MK-II)
3H2287    16.M.3    Joint -adapter -(master cylinder, std.model 1600 and 1600-MK-II)
3H2287   16.M.5    Gasket -brake hose (front and rear)(3) -(hyd.pipes +fittings,
    std.model 1600 and 1600-MK-II)
3H2287    16.M.6    Gasket -rear hose to 3-way -(hyd.pipes +fittings, ARDB model 1600 and
    1600-MK-II) Com.(C)91240
3H2287    TC.M.2   Gasket -rear hose to 3-way -(hyd.pipes+fittings, Twin Cam)
7H7456    15.E.2    Joint for banjo -(slave cylinder, clutch, 1500) -Fin.(C)11767
7H7456    15.M.2    Joint for banjo connection -(master cylinder clutch side, 1500)
7H7456    16.M.3    Joint -banjo bolt connection (lower) -(master cylinder, std.model 1600
    and 1600-MK-II) -was 3H549
11K8276    16.M.3    Bolt -banjo -(master cylinder, std.model 1600 and 1600-MK-II) -was
    3H547
21K8596   16.M.3    Adapter -master cylinder -(std.model 1600 and 1600-MK-II) -changed to
    AHH5284

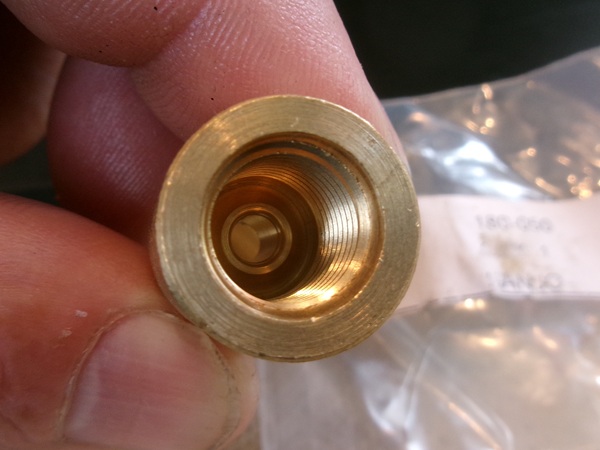

-- 3H544 Banjo --
The female threaded end has 7/16-20-UNF thread to accept 1/4-inch tube with flare nut with bubble flare end. The same banjo fitting is used at the slave cylinder on early production cars. Later cars have different slave cylinder with no banjo fitting.
