Screenwasher Kit -1500 and early Twin Cam (Small Mouth Bottle) |
|||

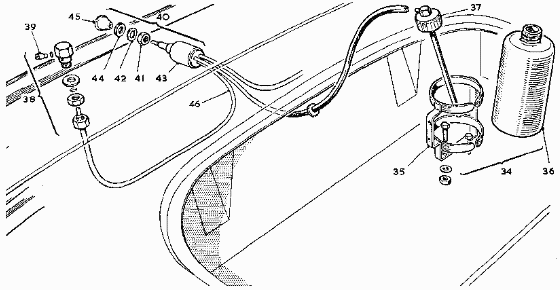

PART NO. SPL.PAGE DESCRIPTION AHH5700 16.R.13 Washer kit -windscreen -(windscreen washer, 1600 and 1600-MK-II) AHH5798 15.R.13 Windscreen washer kit -(1500, optional extra) -(small mouth bottle) AHH5798 TC.R.12 Windscreen washer kit -(Twin Cam, optional extra, small mouth bottle) -changed to AHH5983 (large mouth bottle) Com.(C)2545 AHH5983 16.R.13 Windscreen washer kit -(1600 and 1600-MK-II, optional extra, large mouth bottle) Com.(C)80390 -was AHH5798 AHH5983 TC.R.12 Windscreen washer kit -(Twin Cam, optional extra, large mouth bottle) Com.(C)2545 -was AHH5798 17H9747 15.R.13 34 Bracket and container -(windscreen washer kit, optional) 7H9781 15.R.13 35 Bracket -(bracket and container, windscreen washer kit optional) 7H9781 16.R.13 35 Bracket -(windscreen washer kit, windscreen washer, 1600 and 7H9781 TC.R.12 35 Bracket -(windscreen washer kit, windscreen washer, Twin Cam)- (optional extra) 7H9779 15.R.13 36 Container -(bracket and container, windscreen washer kit optional) 7H9779 16.R.13 36 Container -20 oz. (1-1/2" neck) -(windscreen washer kit, windscreen washer, 1600 and 1600-MK-II) -Fin.(C)80389 -not available use 13H277 with 37H9716 7H9779 TC.R.12 36 Container -20 oz. (1-1/2" neck) -(windscreen washer kit, Twin Cam)- (optional extra) -Fin.(C)2544 -7H9779 and 7H9785 no longer available use 13H227 with 37H9716 13H227 16.R.13 36 Container -20 oz (2-3/16" neck) -(windscreen washer, 1600 and 1600-MK-II) 13H227 TC.R.12 36 Container -20 oz (2-3/16" neck) -(windscreen washer, Twin Cam)- Com.(C)2545 -was 7H9779 -7H9779 and 7H9785 no longer available use 13H227 with 37H9716 7H9785 15.R.13 37 Cap -(bracket and container, windscreen washer kit optional) 7H9785 16.R.13 37 Cap assembly (1-1/2" neck) -(windscreen washer kit, windscreen washer, 1600 and 1600-MK-II) -Fin.(C)80389 -not available use 13H227 with 37H9716 7H9785 TC.R.12 37 Cap assembly (1-1/2" neck) -(windscreen washer kit, Twin Cam)- -Fin.(C)2544 -7H9779 and 7H9785 no longer available use 13H227 with 37H9716) 37H9716 16.R.13 37 Cap assembly -(windscreen washer kit, windscreen washer, 1600 and 1600-MK-II) 37H9716 TC.R.12 37 Cap assembly (2-3/16" neck) -(windscreen washer kit, windscreen washer, Twin Cam) Com.(C)2545 -was 7H9785 -7H9779 and 7H9785 no longer available use 13H227 with 37H9716 7H9777 15.R.13 38 Jet mounting assembly (2) -(windscreen washer kit optional) - (see also 17H9746, 27H9622, 27H9623) 17H9746 15.R.13 38 Jet mounting assembly (2) -(windscreen washer kit) -Fin.(C)45185 (see also 7H9777, 27H9622, 27H9623) 27H9622 15.R.13 38 Jet mounting assembly (2) -(windscreen washer kit) -Com.(C)45186 - was 17H9746 -(see also 7H9777, 17H9746, 27H9623) 27H9622 16.R.13 38 Jet mounting assembly (2) -(windscreen washer kit, windscreen washer, 1600 and 1600-MK-II) -changed to 13H231 27H9622 TC.R.12 38 Jet mounting assembly (2) -(windscreen washer kit, windscreen washer, Twin Cam) 13H231 16.R.13 38 Jet mounting assembly -(windscreen washer kit, windscreen washer, 1600 and 1600-MK-II) -was 27H9622 27H9623 15.R.13 39 Jet (for jet mounting assembly 27H9622) (2) -Com.(C)45186 27H9623 16.R.13 39 Jet (for jet mounting assembly 13H231(2) -[was 27H9622]) 27H9623 TC.R.12 39 Jet (for jet mounting assembly 27H9622) (2) 7H9776 15.R.13 40 Control assembly with tubes -(windscreen washer kit, optional) - (see also 17H9748, 27H9624, 27H9654, 37H9730) 17H9748 15.R.13 40 Control assembly with tubes -(windscreen washer kit, optional) - Fin.(C)45185 -(see also7H9776, 27H9624, 27H9654, 37H9730) 27H9624 15.R.13 40 Control assembly with tubes -(windscreen washer kit, optional) - Com.(C)45186 -(was 17H9748) -(see also 7H9776, 27H9654, 37H9720) 27H9654 16.R.13 40 Control assembly -(windscreen washer kit, windscreen washer, 1600 and 1600-MK-II) -changed to 37H9730 Com.(C)80390 -also see 7H9776, 27H9624, 37H9720) 27H9654 TC.R.12 40 Control assembly -(windscreen washer kit, windscreen washer, Twin Cam) -changed to 37H9730 Com.(C)2545 -also see 7H9776, 27H9624, 37H9720) 37H9730 TC.R.12 40 Control assembly -(windscreen washer kit, windscreen washer, Twin Cam) Com.(C)2545 -was 27H9654 -(see also 7H9776, 17H9748, 27H9624) 7H9782 15.R.13 42 Washer (shakeproof) -(control ass'y with tubes) -(w/s washer kit,opt.) 7H9782 TC.R.12 42 Washer (shakeproof) -(control ass'y, windscreen washer kit, windscreen washer, Twin Cam) 27H9626 15.R.13 43 Rubber bulb -(control ass'y with tubes) -(w/s washer kit, optional)- Com.(C)45186 27H9626 16.R.13 43 Bulb -rubber -(control ass'y, windscreen washer kit, windscreen washer, 1600 and 1600-MK-II) 27H9626 TC.R.12 43 Bulb (rubber) -(control ass'y, windscreen washer kit, windscreen washer, Twin Cam) 7H9783 15.R.13 45 Push-button knob -(control ass'y with tubes) -(w/s washer kit, opt.) 7H9786 15.R.13 46 Tubing (state length)-(control ass'y with tubes) -(w/s washer kit,opt)

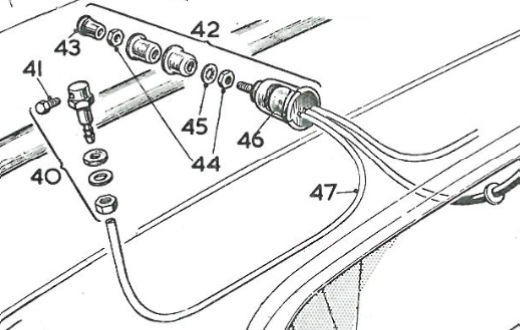

Notice in illustration of the control unit (push pump) at left, there are two additional pieces between the item 44 hex nuts and item 45 washer. These are two concentric cup shells. The smaller one goes through the facia panel from the front, while the larger one nests over it on rear side of the panel. This positions the pump farther back behind the panel so the push shaft and knob do not protrude so far in front. When pushed, the knob shank can be depressed well into the cup area with only the head of the knob still in front of the panel. This illustration appears in SPL Version 3 for the TwinCam, with no part numbers for the shells alone. The change-over point seems to coincide with change from the small cap bottle tothe large cap bottle. Since there were multiple part numbers and variations for the screenwasher kit, and it was an aftermarket accessory, this double cup mouinting configuration may appear in earlier or later production cars.
|
Windscreen Washer Kit
